To Do List 프로젝트 (Back)

To Do List 프로젝트

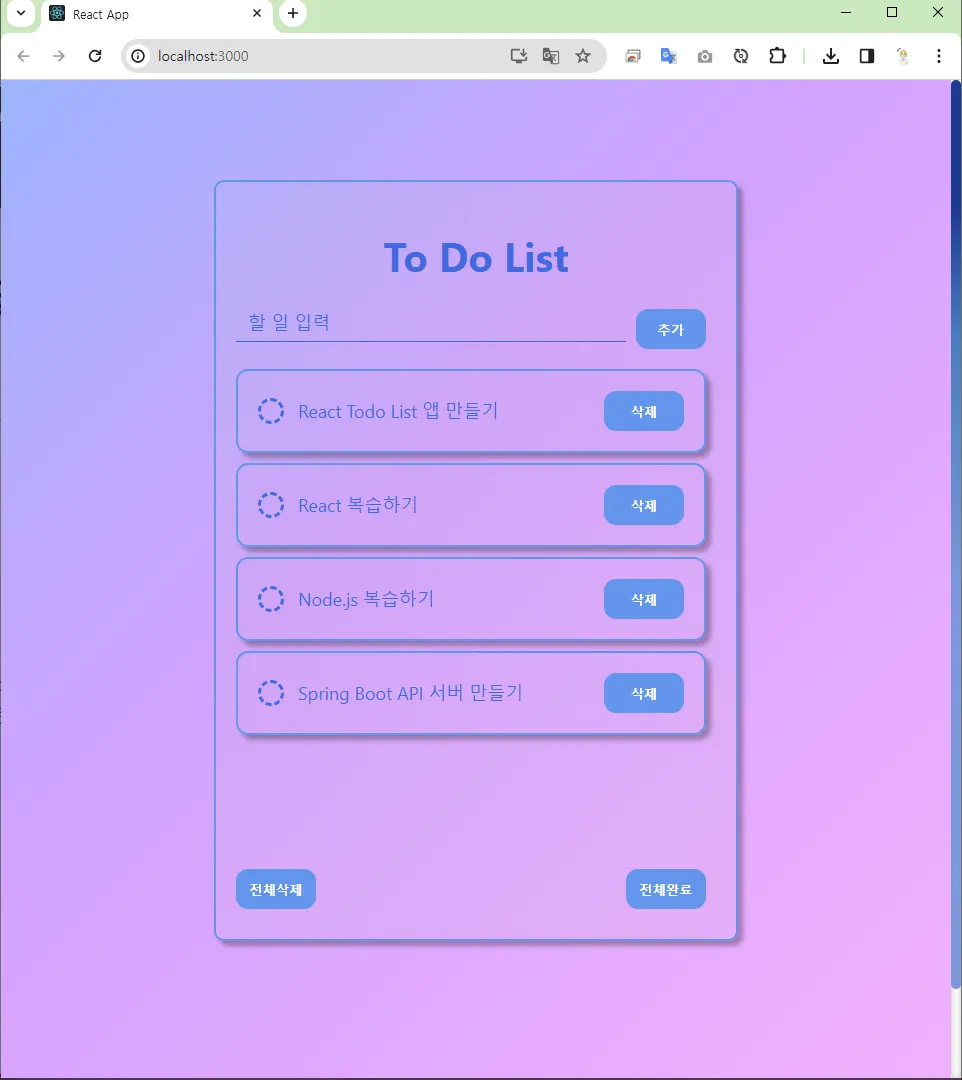

“Todo List - 할 일 목록 UI 만들기”

스타 좀 눌러주세요

github.com

백엔드 (SpringBoot)

데이터베이스

todo 테이블

CREATE TABLE `todo` (
  `no` int NOT NULL AUTO_INCREMENT,
  `name` text NOT NULL,
  `status` int DEFAULT '0',
  `reg_date` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  `upd_date` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`no`)
) COMMENT='할일';
SQL
복사

프로젝트 구조

•

🖧 Server

◦

 java

▪

 controller

•

 TodoController.java

▪

dto

•

 Todo.java

▪

 service

•

 TodoService.java

•

 TodoServiceImpl.java

▪

 mapper

•

 TodoMapper.java

◦

 resources

▪

 main-package/mapper

•

 TodoMapper.xml

▪

 application.properties

▪

 mybatis-config.xml

◦

 build.gradle

코드 작업

 build.gradle

 application.properties

 mybatis-config.xml

 main-package/mapper

•

 TodoMapper.xml

 mapper

•

 TodoMapper.java

dto

•

 Todo.java

 service

•

 TodoService.java

•

 TodoServiceImpl.java

 controller

•

 TodoController.java

build.gradle

plugins {
	id 'java'
	id 'war'
	id 'org.springframework.boot' version '3.1.6'
	id 'io.spring.dependency-management' version '1.1.4'
}

group = 'com.joeun'
version = '0.0.1-SNAPSHOT'

java {
	sourceCompatibility = '17'
}

configurations {
	compileOnly {
		extendsFrom annotationProcessor
	}
}

repositories {
	mavenCentral()
}

dependencies {
	implementation 'org.springframework.boot:spring-boot-starter-web'
	implementation 'org.mybatis.spring.boot:mybatis-spring-boot-starter:3.0.3'
	compileOnly 'org.projectlombok:lombok'
	developmentOnly 'org.springframework.boot:spring-boot-devtools'
	runtimeOnly 'com.mysql:mysql-connector-j'
	annotationProcessor 'org.projectlombok:lombok'
	providedRuntime 'org.springframework.boot:spring-boot-starter-tomcat'
	testImplementation 'org.springframework.boot:spring-boot-starter-test'
	testImplementation 'org.mybatis.spring.boot:mybatis-spring-boot-starter-test:3.0.3'
}

tasks.named('bootBuildImage') {
	builder = 'paketobuildpacks/builder-jammy-base:latest'
}

tasks.named('test') {
	useJUnitPlatform()
}
Plain Text
복사

application.properties

# 데이터 소스 - MySQL
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/joeun?serverTimezone=Asia/Seoul&allowPublicKeyRetrieval=true&useSSL=false&autoReconnection=true&autoReconnection=true
spring.datasource.username=joeun
spring.datasource.password=123456

# Mybatis 설정
# Mybatis 설정 경로      : ~/resources/mybatis-config.xml
mybatis.config-location=classpath:mybatis-config.xml
# Mybatis 매퍼 파일 경로 : ~/메인패키지/mapper/**Mapper.xml
mybatis.mapper-locations=classpath:mybatis/mapper/**/**.xml
Plain Text
복사

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "https://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

	<!-- 설정 -->
	<settings>
		<!-- 언더스코어 케이스인 컬럼을 카멜 케이스로 변환하는 설정  -->
		<!-- board_no - boardNo -->
		<setting name="mapUnderscoreToCamelCase" value="true"/>
	</settings>

	<!-- 타입 별칭 설정 -->
	<typeAliases>
		<!-- 테이블과 매핑할 DTO가 있는 패키지 경로 지정 -->
		<package name="com.joeun.todo.dto"/>
	</typeAliases>


</configuration>
XML
복사

main-package/mapper

•

 TodoMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<!-- namespace="매퍼 인터페이스 경로" -->
<mapper namespace="com.joeun.todo.mapper.TodoMapper">

    <!-- 할일 목록 -->
    <select id="list" resultType="Todo">
        SELECT *
        FROM todo
        ORDER BY status ASC, no DESC
    </select>

    <!-- 할일 조회 -->
    <select id="select" resultType="Todo">
        SELECT *
        FROM todo
        WHERE no = #{no}
    </select>

    <!-- 할일 등록 -->
    <insert id="insert">
        INSERT INTO todo( name )
        VALUES ( #{name} )
    </insert>

    <!-- 할일 수정 -->
    <update id="update">
        UPDATE todo
           SET name = #{name}
              ,status = #{status}
              ,upd_date = now()
        WHERE no = #{no}
    </update>

    <!-- 할일 삭제 -->
    <delete id="delete">
        DELETE FROM todo
        WHERE no = #{no}
    </delete>

    <!-- last id -->
    <select id="lastId" resultType="int">
        select last_insert_id() id
    </select>



    <!-- 전체 할일 완료 -->
    <update id="completeAll">
        UPDATE todo
           SET status = 1
              ,upd_date = now()
    </update>

    <!-- 전체 할일 삭제 -->
    <delete id="deleteAll">
        DELETE FROM todo
    </delete>


</mapper>
XML
복사

mapper

•

 TodoMapper.java

package com.joeun.todo.mapper;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;

import com.joeun.todo.dto.Todo;

@Mapper
public interface TodoMapper {

    public List<Todo> list() throws Exception;

    public Todo select(int no) throws Exception;

    public int insert(Todo todo) throws Exception;

    public int update(Todo todo) throws Exception;

    public int delete(int no) throws Exception;

    public int lastId() throws Exception;

    public int completeAll() throws Exception;

    public int deleteAll() throws Exception;

}
Java
복사

dto

•

 Todo.java

package com.joeun.todo.service;

import java.util.List;

import com.joeun.todo.dto.Todo;

public interface TodoService {
    public List<Todo> list() throws Exception;

    public Todo select(int no) throws Exception;

    public int insert(Todo todo) throws Exception;

    public int update(Todo todo) throws Exception;

    public int delete(int no) throws Exception;

    public int lastId() throws Exception;

    public int completeAll() throws Exception;

    public int deleteAll() throws Exception;
}
Java
복사

service

•

 TodoService.java

package com.joeun.todo.service;

import java.util.List;

import com.joeun.todo.dto.Todo;

public interface TodoService {
    public List<Todo> list() throws Exception;

    public Todo select(int no) throws Exception;

    public int insert(Todo todo) throws Exception;

    public int update(Todo todo) throws Exception;

    public int delete(int no) throws Exception;

    public int lastId() throws Exception;

    public int completeAll() throws Exception;

    public int deleteAll() throws Exception;
}
Java
복사

•

 TodoServiceImpl.java

package com.joeun.todo.service;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.joeun.todo.dto.Todo;
import com.joeun.todo.mapper.TodoMapper;

@Service
public class TodoServiceImpl implements TodoService {

    @Autowired
    private TodoMapper todoMapper;

    @Override
    public List<Todo> list() throws Exception {
        return todoMapper.list();
    }

    @Override
    public Todo select(int no) throws Exception {
        return todoMapper.select(no);
    }

    @Override
    public int insert(Todo todo) throws Exception {
        int result = todoMapper.insert(todo);

        if( result > 0 )
            result = todoMapper.lastId();

        return result;
    }

    @Override
    public int update(Todo todo) throws Exception {
        return todoMapper.update(todo);
    }

    @Override
    public int delete(int no) throws Exception {
        return todoMapper.delete(no);
    }

    @Override
    public int lastId() throws Exception {
        return todoMapper.lastId();
    }

    @Override
    public int completeAll() throws Exception {
        return todoMapper.completeAll();
    }

    @Override
    public int deleteAll() throws Exception {
        return todoMapper.deleteAll();
    }


}
Java
복사

controller

•

 TodoController.java

[Extension] Spring Code Generator

꿀팁 : sp-crud

marketplace.visualstudio.com

package com.joeun.todo.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.CrossOrigin;
import org.springframework.web.bind.annotation.DeleteMapping;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.PutMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.joeun.todo.dto.Todo;
import com.joeun.todo.service.TodoService;

import lombok.extern.slf4j.Slf4j;


@Slf4j
@RestController
@CrossOrigin(origins = "*")             // cors 허용
@RequestMapping("/todos")
public class TodoController {

    @Autowired
    private TodoService todoService;

    @GetMapping()
    public ResponseEntity<?> getAll() {
        log.info("list...");
        try {
            List<Todo> todoList = todoService.list();
            log.info("할 일 개수 : " + todoList.size());
            return new ResponseEntity<>(todoList, HttpStatus.OK);
        } catch (Exception e) {
            return new ResponseEntity<>(HttpStatus.INTERNAL_SERVER_ERROR);
        }
    }

    @GetMapping("/{id}")
    public ResponseEntity<?> getOne(@PathVariable Integer id) {
        log.info("select...");
        log.info("id : " + id);
        try {
            Todo todo = todoService.select(id);
            log.info("todo : " + todo);
            return new ResponseEntity<>(todo, HttpStatus.OK);
        } catch (Exception e) {
            return new ResponseEntity<>(HttpStatus.INTERNAL_SERVER_ERROR);
        }
    }

    @PostMapping()
    public ResponseEntity<?> create(@RequestBody Todo todo) {
        log.info("insert...");
        try {
            int result = todoService.insert(todo);      // 새로 생성된 no 를 응답
            todo.setNo(result);
            log.info("result : " + result);
            if( result > 0 )
                return new ResponseEntity<>(todo, HttpStatus.CREATED);
            else
                return new ResponseEntity<>(todo, HttpStatus.OK);
        } catch (Exception e) {
            return new ResponseEntity<>(HttpStatus.INTERNAL_SERVER_ERROR);
        }
    }

    @PutMapping()
    public ResponseEntity<?> update(@RequestBody Todo todo) {
        log.info("update...");
        log.info(todo.toString());
        try {
            int result = 0;

            // 전체 완료
            if( todo.getNo() == -1 ) {
                result = todoService.completeAll();
            }
            else {
                result = todoService.update(todo);
            }
            if( result > 0 )
                return new ResponseEntity<>("Update Result", HttpStatus.OK);
            else
                return new ResponseEntity<>("No Result", HttpStatus.OK);
        } catch (Exception e) {
            return new ResponseEntity<>(HttpStatus.INTERNAL_SERVER_ERROR);
        }
    }

    @DeleteMapping("/{id}")
    public ResponseEntity<?> destroy(@PathVariable Integer id) {
        log.info("delete...");
        log.info("id  : " + id);
        try {
            int result = 0;
            // 전체 삭제
            if( id == -1 ) {
                result = todoService.deleteAll();
            }
            else {
                result = todoService.delete(id);
            }
            if( result > 0 )
                return new ResponseEntity<>("Destroy Result", HttpStatus.OK);
            else
                return new ResponseEntity<>("No Result", HttpStatus.OK);

        } catch (Exception e) {
            return new ResponseEntity<>(HttpStatus.INTERNAL_SERVER_ERROR);
        }
    }

}
Java
복사

테스트

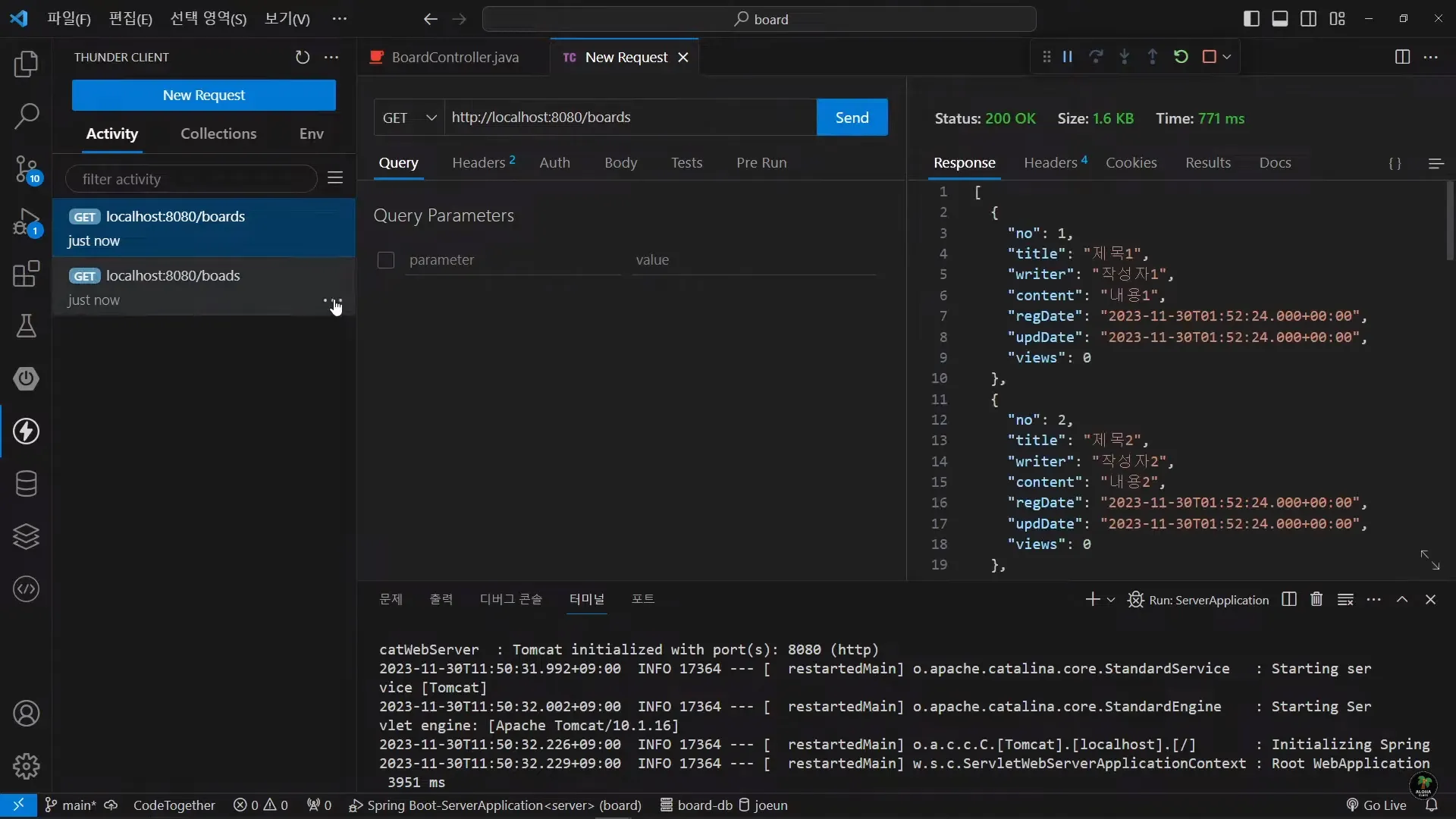

게시글 목록 [GET]

http://localhost:8080/boards
Plain Text
복사

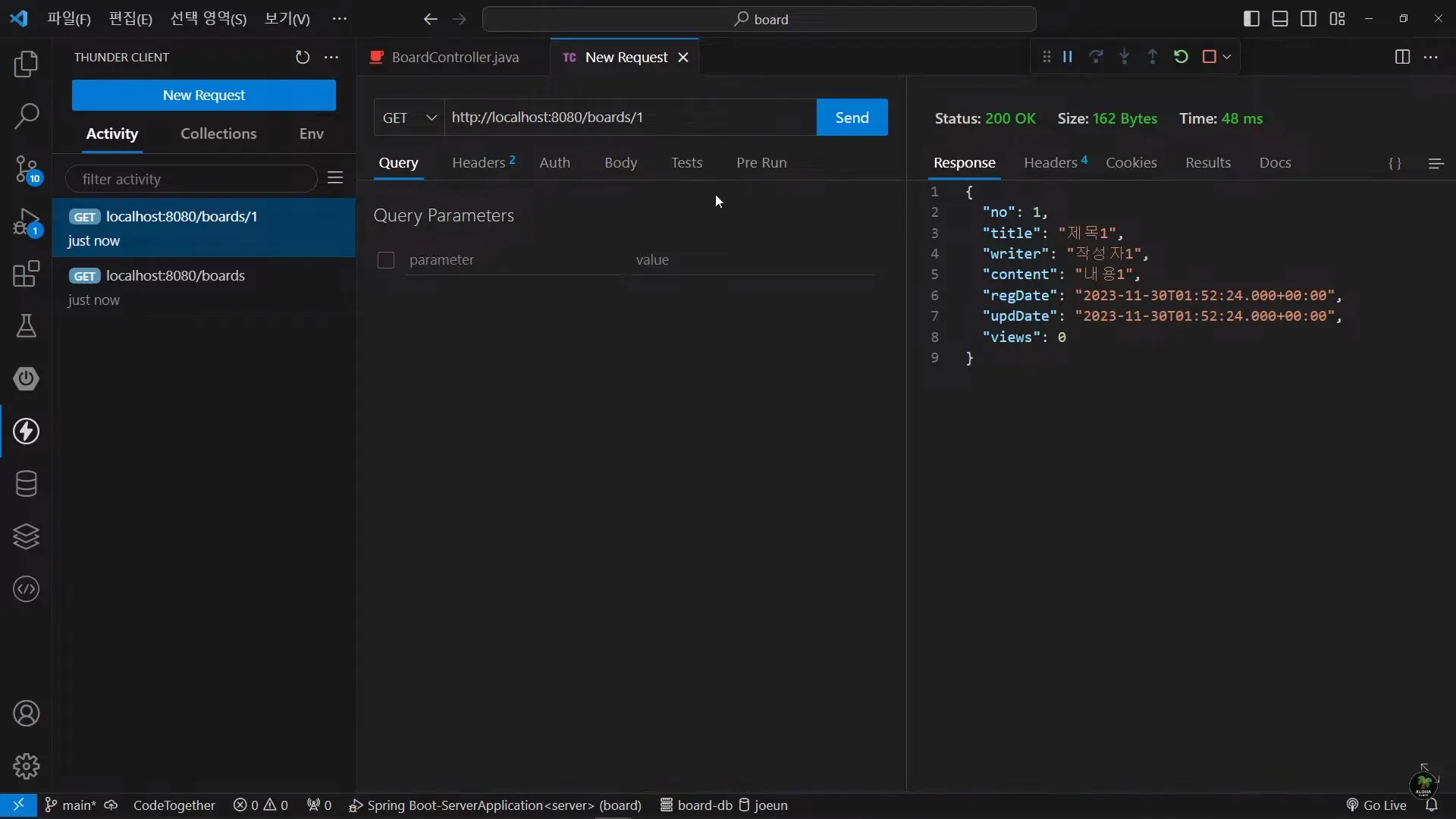

게시글 조회 [GET]

http://localhost:8080/boards/1
Plain Text
복사

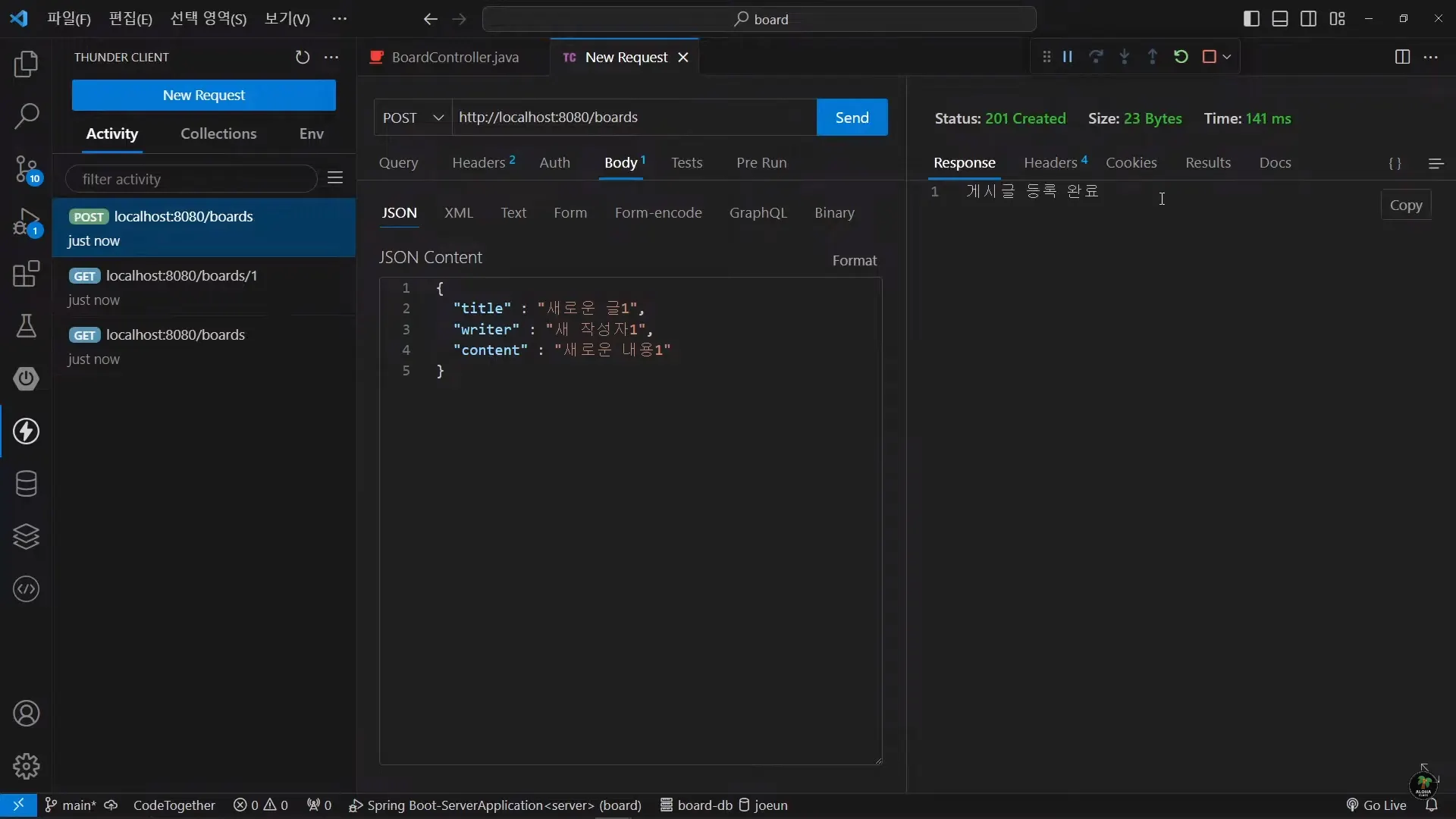

게시글 등록 [POST]

http://localhost:8080/boards
Plain Text
복사

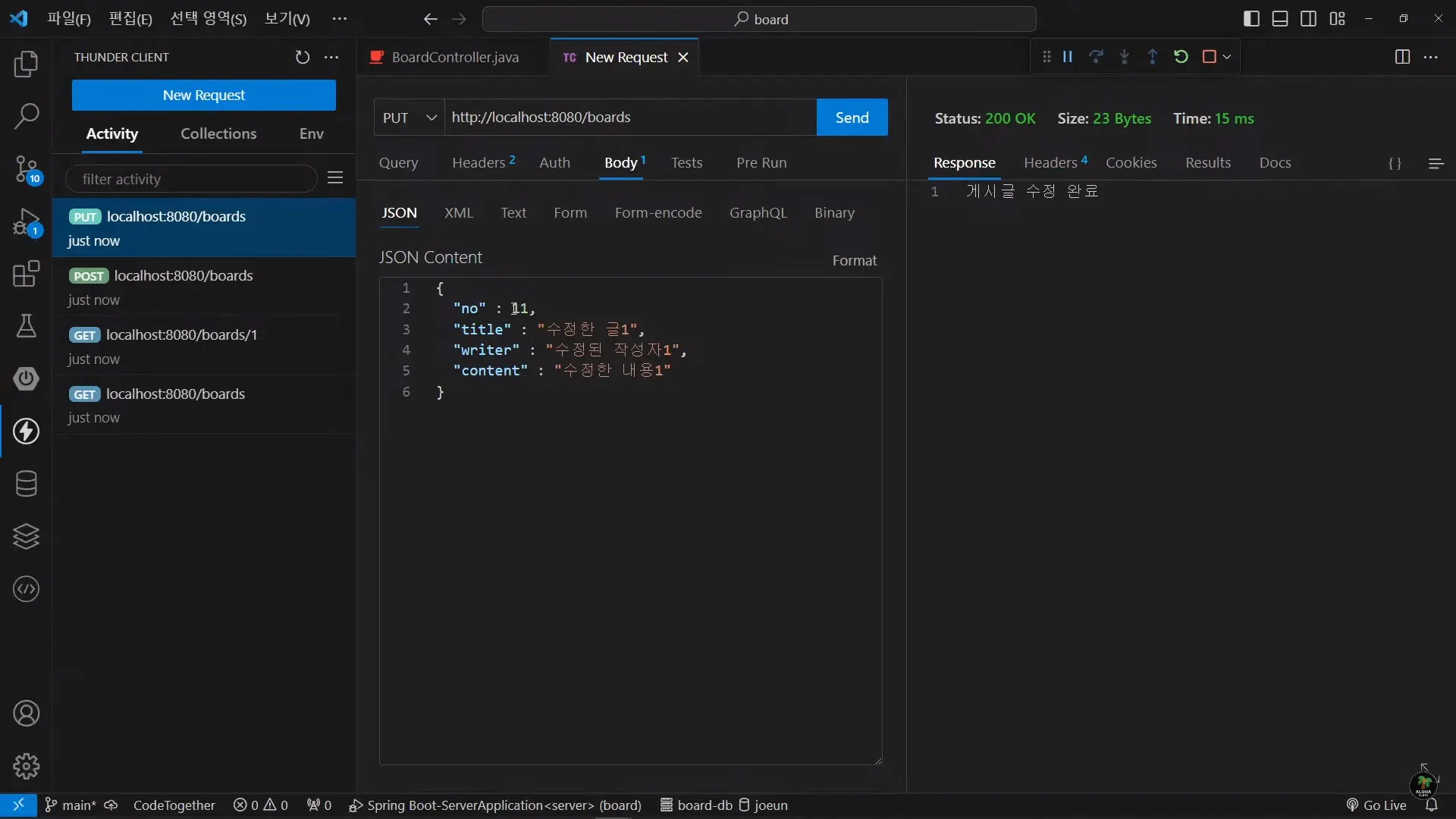

게시글 수정 [PUT]

http://localhost:8080/boards
Plain Text
복사

게시글 삭제 [DELETE]

http://localhost:8080/boards/1
Plain Text
복사
